ELECTROCHEM ENGINEERING Furnace Accessories

Furnace Accessories

Thyristor power controllers

Single phase thyristor controller

Technical specification:

  • Input:  Single phase (240 ± 10 %)
  • Current rating: 20 A to 300 A
  • Control: Phase angle control
  • Control input: 4-20 mA/0-5 V DC/ 0-10 V DC/Potentiometer
  • Start: Soft start
  • Load: Resistive and inductive load

Note: Suitable for all type of heating elements such as Nichrome/Kanthal A1/SiC/MoSi2

  1. Two phase thyristor controller

Technical specification:

  • Input:  Two phases (415 ± 10 %)
  • Current rating: 20 A to 300 A
  • Control: Phase angle control
  • Control input: 4-20 mA/0-5 V DC/ 0-10 V DC/Potentiometer
  • Start: Soft start
  • Load: Resistive and inductive load

Note : Suitable for all type of heating elements such as Nichrome/Kanthal A1/SiC/MoSi2

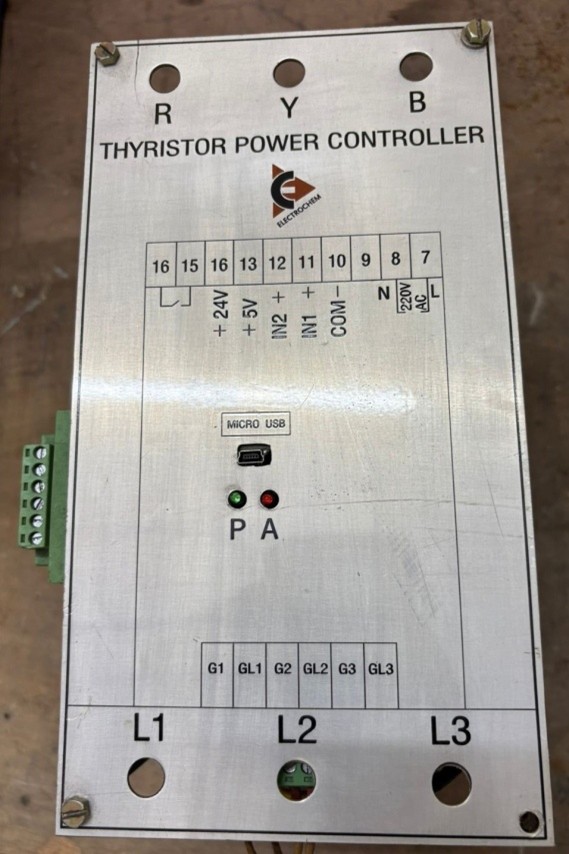

  1. Three phase thyristor controller

Technical specification:

  • Input:  Three phases (415 ± 10 %)
  • Current rating: 20 A to 300 A
  • Control: Phase angle control
  • Control input: 4-20 mA/0-5 V DC/ 0-10 V DC/Potentiometer
  • Start: Soft start
  • Load: Resistive and inductive load (star

Note: Suitable for all type of heating elements such as Nichrome/Kanthal A1/SiC/MoSi2

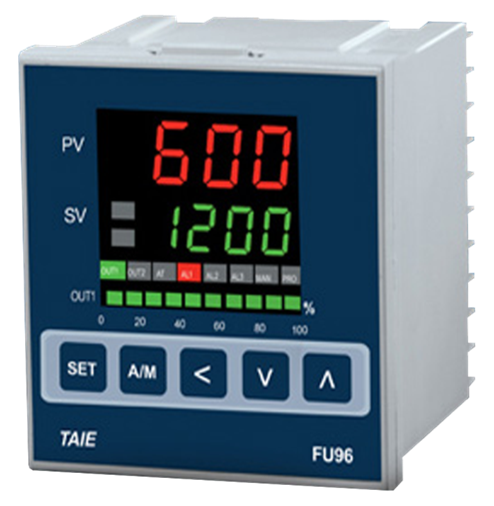

PID controller

Input : Universal (Type K, J, T, E, and N (base metal) and R, S, and B (noble metal),RTDs)

  1. Output : SSR/4-20 mA/0-5 V/0-10 V
  1. Accuracy : ± 1 DegC  for thermocouples and ± 0.1 % for RTDs)
  1. Alarm output : 1/2 (As per requirements)
  1. Communication : RS-485 (Optional)
  1. Input supply: Single phase (240 ± 10 %)

Size : 96 x 90 / 72 x 72 /48 x 48

Size : 96 x 90 / 72 x 72 /48 x 48

On-off controller

  • Input : Universal (Type K, J, T, E, and N (base metal) and R, S, and B (noble metal),RTDs)Output : Relay outputAccuracy : ± 1 DegC  for thermocouples and ± 0.1 % for RTDs)Input supply: Single phase (240 ± 10 %)

Data Logger

  • Input channel: 2/4/6
  • Input signal : Universal
  • Output: Relay/ SSR
  • Alarm: 2/4/6
  • Communication : RS-485/Ethernet
  • Size : 5 inch/7 inch/9 inch

  1. MoSi2 Heating Element
    1. SiC Heating Element
    1. Kanthal Heating Element
    1. Nichrome Heating Element
    1. Ceramic Fiber Board
    1. Ceramic Fiber Blanket
    1. Ceramic fiber modules
    1. Alumina Tubes/crucible

Sensors

  • Thermocouples
  • Type: R, S, J, K, T, N, E
  • Elements: Simplex/Duplex
  • Sheath: Inconel 600, 310SS, 316SS
  • Junction : Ground/ISL
    1. RTDs
  • Type: PT-100
  • Elements: 2 Wire/3 Wire
  • Sheath: Inconel 600, 310SS, 316SS
